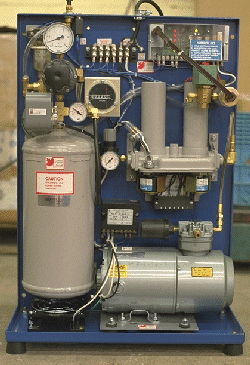

P-550HTL Air Dryer (cover removed)

SPECIFICATIONS

MODEL P-550HTL


Output Capacity:        Normal: 550SCFD
			Maximum: 700SCFD
Ambient Operating	35o F.- 120o F.
Temperature Range:	(1.7 deg. C.- 49 deg. C.)
Power Requirements:	115v, 1 Phase, 60Hz, 3.5 Amp
Electrical Options	230v, 1Phase, 60Hz, 2.0 Amp
Available for World	(10 Amp. Service recommended)
Wide Applications	Also available in 50 Hz at reduced
			capacity and D.C. voltages
Dimensions:		10.75" D x 19" W x 26" H
			(27.3 cm D x 48.3 cm H x 66 cm H)
Shipping Weight:	85-130 lbs. depending upon options
			and packing. (38-60 kgs.)
Outlet Pressure Range:	Standard: 2-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Dew Point:	-40 deg. F. (-40 deg. C.)
Noise Level:		72 dBA at 10 feet
Heat Dissipation:	1900 BTU/hr.
Compressor Type:	1/6 HP. Oiless
Dryer Type:		HEATLESS DESSICANT
Alarms:			Optional Accessories Available
