canadian puregas equipment limited

P100MBR Antenna Air Dryer

- For Cellular and Microwave Antenna Applications

- Standard Air Delivery at 100 SCFD (Standard Cubic Feet/Day

- Minimal Controls - User Friendly - Low Maintenance

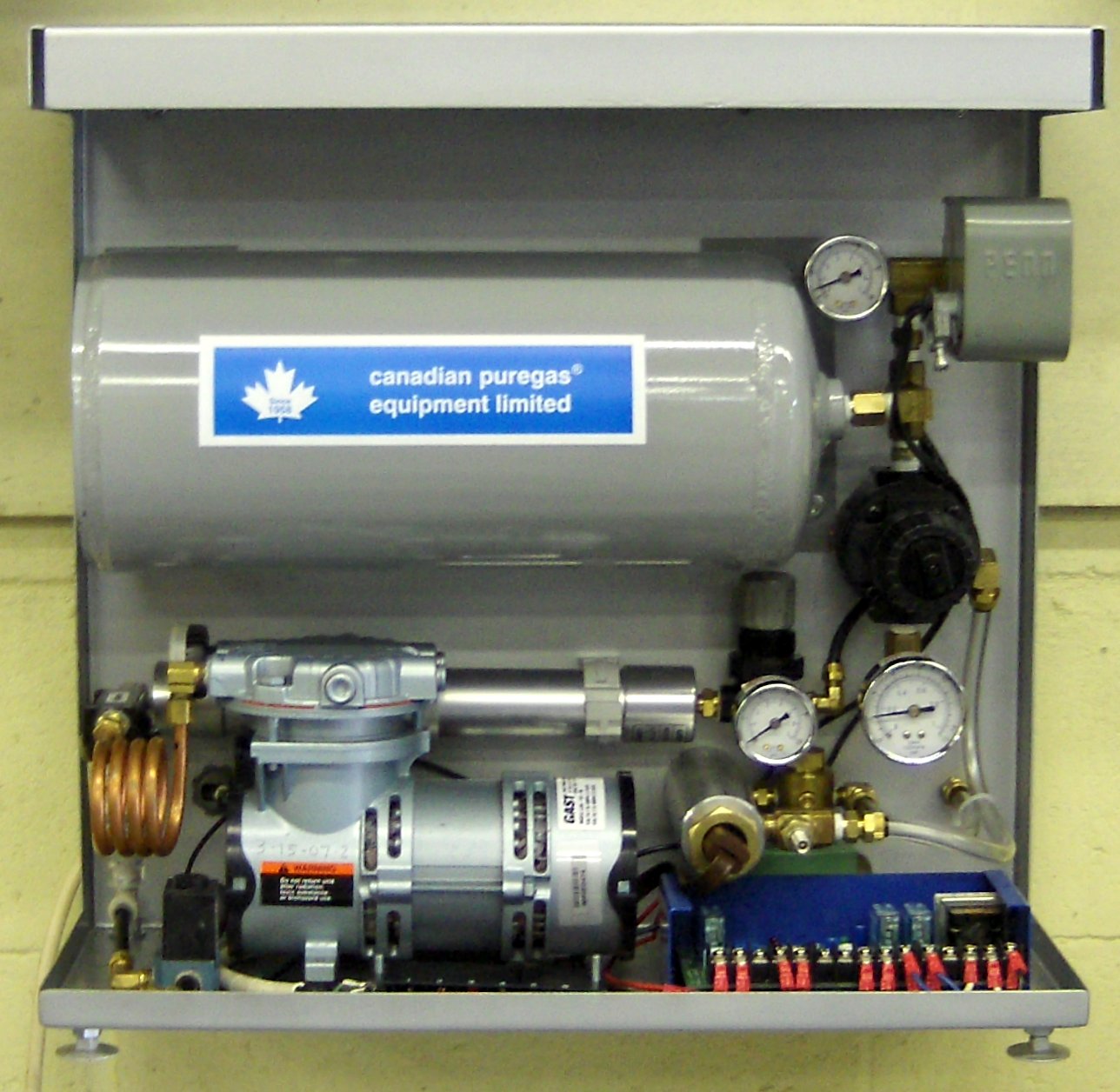

- Mountable on rack, direct to wall (as shown) or on floor (anti-vibration feet)

- Low pressure regulator (self-relieving**) with 0-5 PSI gauge

- Available in low-height frame for rack mounting

- Dry air reserve tank

- Various optional alarm features

- Visual Humidty indicator

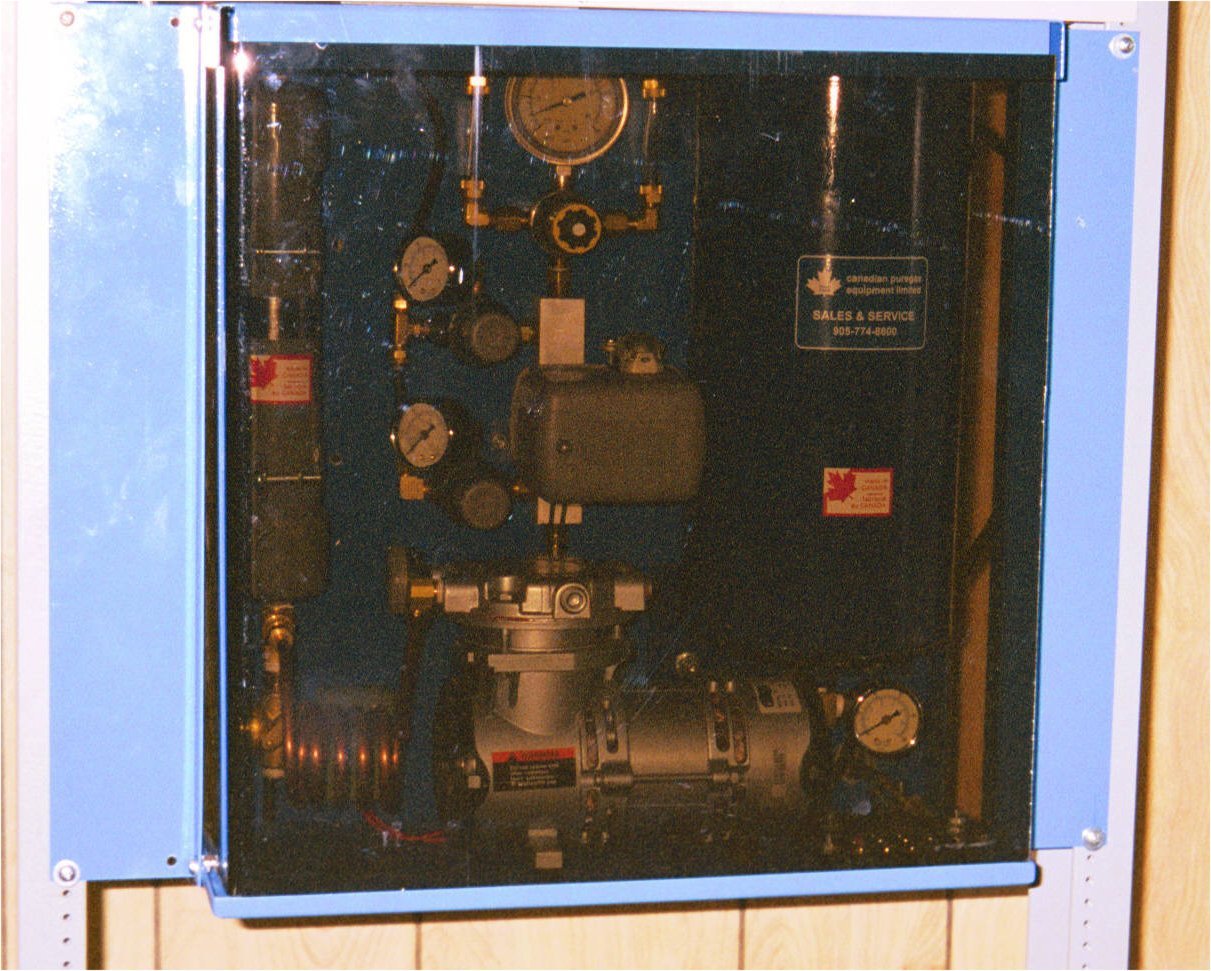

- Translucent acrylic cover

Specifications

Model Number P100MBR


Output Capacity:        100SCFD @ -40 degree dew point

Power Requirements:	115v, 1 Phase, 60Hz, 1 Amp
Electrical Options	220v, 50Hz, 24/48 VDC
Dimensions:		17" W x 8" D x 16" H (floor & wall mount as pictured)
			17" W x 14" D x 10" H (low-height rack mount frame)
			(43 cm W x 20 cm D x 41 cm H)
Shipping Weight:	43 lbs. depending upon options
			and packing. (20 kgs.)
Outlet Range:	       Adjustable: 0-5 psig
			Self relieving regulator to compensate for pressure variations
			due to ambient temperature changes to protect waveguides/antennas**.
Compressor Type:	1/8 HP. Oiless
Dryer Type:		Maintenance free Membrane, -40 DP
Humidity Level:	Standard Visual Moisture Indicator
Optional Alarms:	Electronic Humidity monitor
			Low Output Pressure
			High Output Pressure
			Power Fail
			Compressor Run Time


**Refer to discussion paper: Micowave/Antenna Air Dryers. Click to view pdf file.

.
