P100MBR Antenna Air Dryer

P150MBR Antenna Air Dryer

P200MBR Antenna Air Dryer

P100/150/200MBR Antenna Air Dryer

- For Cellular and Microwave Antenna Applications

- Standard Air Delivery at 100-200 SCFD (Standard Cubic Feet/Day)

- Minimal Controls - User Friendly - Low Maintenance

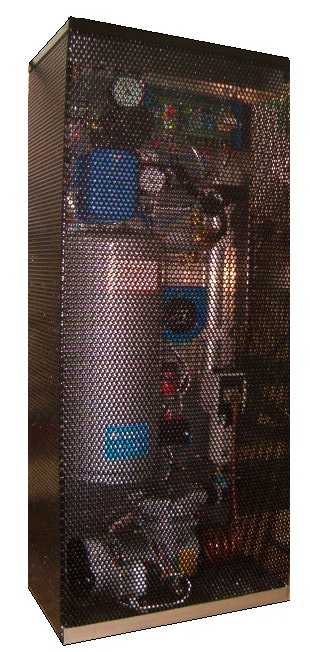

- Mountable direct to wall (as shown) or on floor (anti-vibration feet)

- Low pressure regulator (self-relieving**) with 0-5 PSI gauge

- Dry air reserve tank

- Various optional alarm features

- Visual Humidty indicator

- Perforated metal cover

Specifications

Model Number P150MBR


Output Capacity:    Normal  at  150 SCFD  Emergency at 250 SCFD

Power Requirements:	115v, 1 Phase, 60Hz, 1 Amp
Electrical Options	220v, 50Hz, 24/48 VDC
Dimensions:		14" W x 9" D x 32" H (36cm x 23cm x 81cm)
Shipping Weight:	43 lbs. depending upon options
			and packing. (20 kgs.)
Outlet Range:	       Adjustable: 0-4 psig
			Self relieving regulator to compensate for pressure variations
			due to ambient temperature changes to protect waveguides/antennas**.
Compressor Type:	1/8 HP. Oiless
Dryer Type:		Maintenance free Membrane, -40 DP
Humidity Level:	Standard Visual Moisture Indicator
Optional Alarms:	Electronic Humidity monitor
			Low Output Pressure
			High Output Pressure
			Power Fail
			Compressor Run Time


**Refer to discussion paper: Micowave/Antenna Air Dryers. Click to view pdf file.

.
