Polemount Dryers

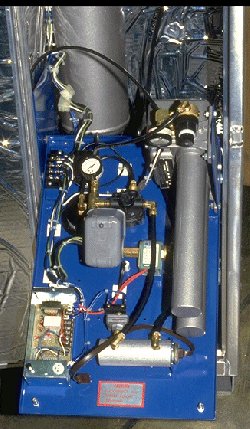

Pictured above is a pole mount air dryer showing easy access with swing down panel.

MODEL 1200PM with fully enclosed temperature controlled cabinet.


Output Capacity:        Normal: 1200SCFD
			Maximum: 2000SCFD
Ambient Operating	-40o F.- 120o F.
Power Requirements:	115v, 1 Phase, 60Hz, 12 Amp
Electrical Options	Ohter voltages Available
Available for World	Also available in 50 Hz at reduced
Wide Applications	capacity and D.C. voltages
Dimensions:		48" H x 17.5" W x 20" D
Shipping Weight:	250 lbs.
Outlet Pressure Range:	Standard: 0-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Humidity Level:	Less than 2% R.H. @ 70 degrees F.
Noise Level:		40 dBA at 3 feet
Compressor Type:	1/2 HP. Oiless
Dryer Type:		HEATLESS DESSICANT
Alarms:			Discreet or Common
			-High Humidity
			-Low Output Pressure
			-Power Failure

MODEL 2000PM with fully enclosed temperature controlled cabinet.


Output Capacity:        Normal: 2000SCFD
			Maximum: 3500SCFD
Ambient Operating	-40o F.- 120o F.
Power Requirements:	115v, 1 Phase, 60Hz, 15 Amp
Electrical Options	Ohter voltages Available
Available for World	Also available in 50 Hz at reduced
Wide Applications	capacity and D.C. voltages
Dimensions:		48" H x 17.5" W x 20" D
Shipping Weight:	250 lbs.
Outlet Pressure Range:	Standard: 0-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Humidity Level:	Less than 2% R.H. @ 70 degrees F.
Noise Level:		40 dBA at 3 feet
Compressor Type:	3/4 HP. Oiless
Dryer Type:		HEATLESS DESSICANT
Alarms:			Discreet or Common
			-High Humidity
			-Low Output Pressure
			-Power Failure

MODEL 2600PM with fully enclosed temperature controlled cabinet.


Output Capacity:        Normal: 2600SCFD
			Maximum: 4200SCFD
Ambient Operating	-40o F.- 120o F.
Power Requirements:	115v, 1 Phase, 60Hz, 12 Amp
Electrical Options	Ohter voltages Available
Available for World	Also available in 50 Hz at reduced
Wide Applications	capacity and D.C. voltages
Dimensions:		48" H x 17.5" W x 20" D
Shipping Weight:	250 lbs.
Outlet Pressure Range:	Standard: 0-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Humidity Level:	Less than 2% R.H. @ 70 degrees F.
Noise Level:		40 dBA at 3 feet
Compressor Type:	3/4 HP. Oiless
Dryer Type:		HEATLESS DESSICANT
Alarms:			Discreet or Common
			-High Humidity
			-Low Output Pressure
			-Power Failure

 Fully enclosed cabinet with available heating and cooling for outdoor use.
