canadian puregas equipment limited

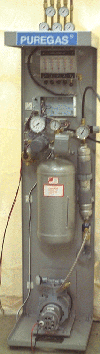

Membrane Air Dryer (cover removed)


SPECIFICATIONS

MODEL P-150MBR


Output Capacity:        Normal: 150SCFD
			Maximum: 260SCFD
Ambient Operating	35o F.- 120o F.
Temperature Range:	(1.7 deg. C.- 49 deg. C.)
Power Requirements:	115v, 1 Phase, 60Hz, 1.2 Amp
Electrical Options	230v, 1Phase, 60Hz, 2.0 Amp
Available for World	(10 Amp. Service recommended)
Wide Applications	Also available in 50 Hz at reduced
			capacity and D.C. voltages
Dimensions:		12" D x 12" W x 46" H
			(30 cm D x 30 cm H x 116 cm H)
Shipping Weight:	85-130 lbs. depending upon options
			and packing. (38-60 kgs.)
Outlet Pressure Range:	Standard: 2-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Dew Point:	-40 deg. F. (-40 deg. C.)
Noise Level:		56 dBA at 10 feet
Heat Dissipation:	1200 BTU/hr.
Compressor Type:	1/8 HP. Oiless
Dryer Type:		MEMBRANE
Alarms:			Optional


MODEL P-400MBR


Output Capacity:        Normal: 400SCFD
			Maximum: 700SCFD
Ambient Operating	35o F.- 120o F.
Temperature Range:	(1.7 deg. C.- 49 deg. C.)
Power Requirements:	115v, 1 Phase, 60Hz, 3.5 Amp
Electrical Options	230v, 1Phase, 60Hz, 2.0 Amp
Available for World	(10 Amp. Service recommended)
Wide Applications	Also available in 50 Hz at reduced
			capacity and D.C. voltages
Dimensions:		12" D x 12" W x 46" H
			(30 cm D x 30 cm H x 116 cm H)
Shipping Weight:	85-130 lbs. depending upon options
			and packing. (38-60 kgs.)
Outlet Pressure Range:	Standard: 2-15 psig
(adjustable)		Optional: below 2.5 psig
Outlet Dew Point:	-40 deg. F. (-40 deg. C.)
Noise Level:		72 dBA at 10 feet
Heat Dissipation:	1900 BTU/hr.
Compressor Type:	1/6 HP. Oiless
Dryer Type:		MEMBRANE
Alarms:			Optional
