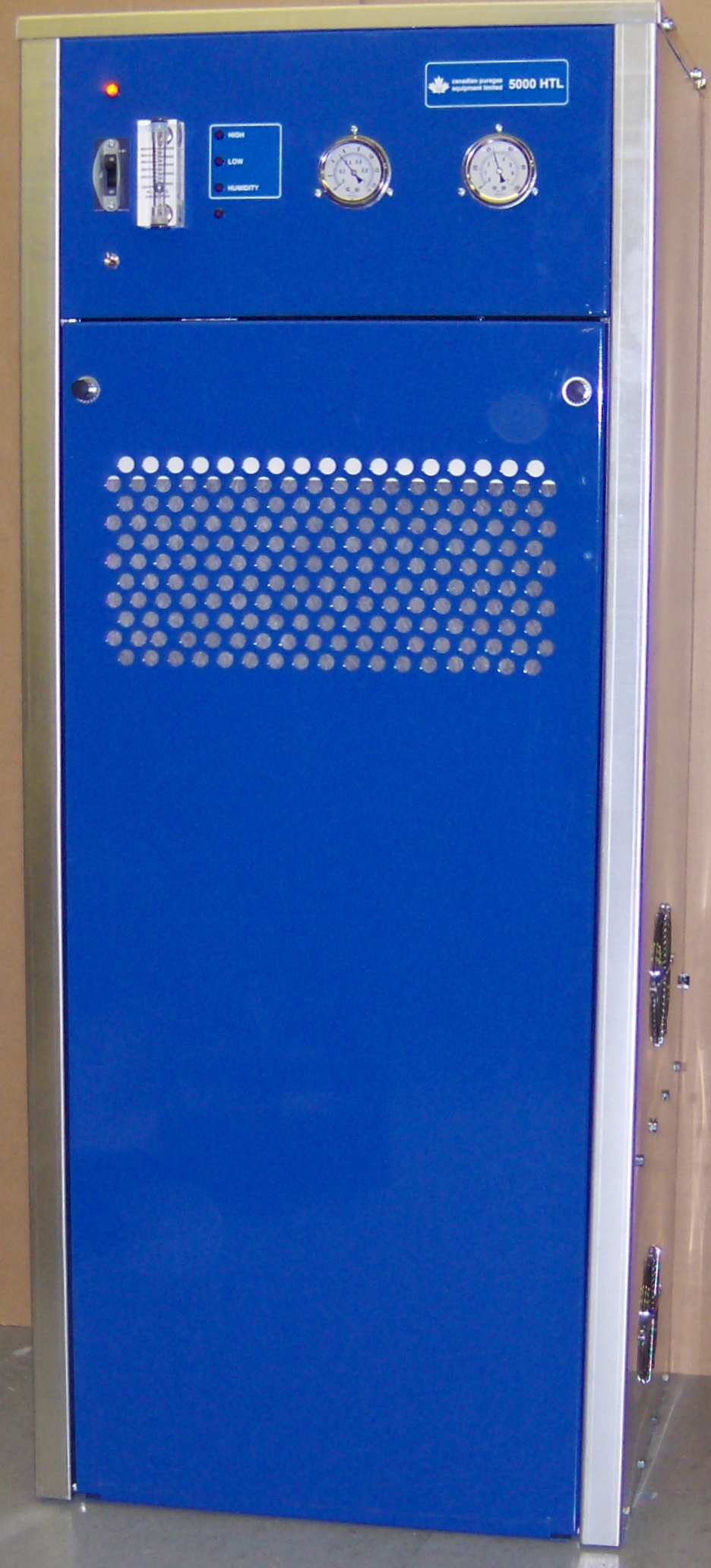

P5000HTL Central Office Air Dryer

- Standard Air Delivery at 5000 SCFD, Emergency 8400 SCFD

- Field Proven Oilless Piston Compressors on slide out trays

- Heatless regenerative drying

- Fan ventilated and filtered cabinet

- Minimal Controls - User Friendly - Low Maintenance

- Components easliy accessible within cabinet

- Standard annual maintenance for compressors and dehydrators

- Minimal electronics, no control boards = no dryer downtime due to board failures

- Discreet or common alarms

- Low noise level for manned central offices


MODEL P5000HTL Specifications


Output Capacity:		Normal: 5000SCFD
			Maximum: 8400SCFD
Ambient Operating		35 deg F.- 120 deg F.
Temperature Range:		(1.7 deg. C.- 49 deg. C.)
Power Requirements:		208v, 1 Phase, 60Hz, 16 Amp
Electrical Options		Other voltages Available
Available for World		Also available in 50 Hz at reduced
Wide Applications		capacity
Dimensions:		60" H x 25" W x 22" D
Shipping Weight:		350 lbs.
Outlet Pressure Range:	Standard: 0-15 psig

Outlet Humidity Level:		Less than 2% R.H. @ 70 degrees F.
Noise Level:		56 dBA at 3 feet
Compressor Type:		(2) 3/4 HP. Oilless
Dryer Type:		HEATLESS DESSICANT
Alarms:			Discreet or Common
			-High Humidity
			-High/Low Output Pressure
			-Power Failure
.
